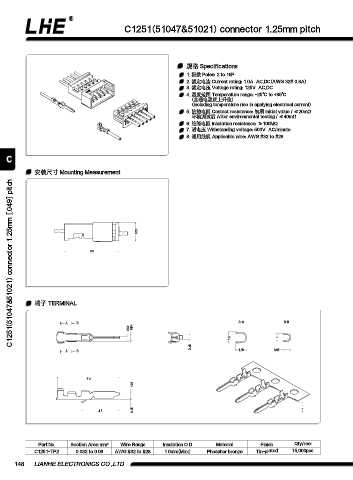

C1251(51047&51021) connector 1.25mm pitch

規格 Specifications
1. 極數 Poles: 2 to 16P
2. 額定電流 Current rating: 1.0A AC,DC(AWG 32# 0.8A)
3. 額定電壓 Voltage rating: 125V AC,DC
4. 溫度范圍 Temperature range: -25℃ to +85℃
(含通電溫度上升值)
(Including temperature rise in applying electrical current)
5. 接觸電阻 Contact resistance: 初期 Initial value / ≤20mΩ
環境測試后 After environmental testing / ≤40mΩ
6. 絕緣電阻 Insulation resistance: ≥100MΩ
7. 耐電壓 Withstanding voltage: 500V AC/minute
8. 適用線規 Applicable wire: AWG #32 to #28

C

安裝尺寸 Mounting Measurement
C1251(51047&51021) connector 1.25mm [.049] pitch

3.25

9.2

端子 TERMINAL

A B A-A B-B
0.32 0.94
1.3 1
0.46
A B 1.35 0.95

7.4
1.05

4.5 0.35

Part No. Section Area mm2 Wire Range Insulation O.D Material Finish Qty/reel
C1251-TP2 0.032 to 0.08 AWG #32 to #28 1.0mm(Max) Phosphor bronze Tin-plated 15,000pcs

148 LIANHE ELECTRONICS CO.,LTD.
